48-Hour Torsion Spring Prototypes | Engineered for Complex Space & Torque Applications
1. Torsion Spring Quick Detail
We focus on solving complex non-standard torsion spring requirements, providing full-process services from design support to batch manufacturing. The factory is equipped with precision spring machines and CNC forming equipment covering wire diameters from Φ0.1-12mm. Combined with a 15-year process database, we excel at achieving demanding torque and spatial requirements. With the IATF 16949 system as our quality cornerstone and the rapid response capability of a 200+ mold library, we promise to provide initial samples within 48 hours and initiate trial production within 72 hours, committed to being your efficient and reliable torsion component partner.
2. Torsion Spring Product Description
A successful torsion spring application depends on a precise balance between torque curves, space constraints, and lifespan requirements. We take this as our starting point, providing solutions based on deep technical collaboration. Our engineers will work with you to analyze every detail of the application scenario—from installation methods and friction factors to ambient temperature. Based on this, we use specialized software for simulation calculations and recommend the most suitable combination of materials and processes (such as using chromium-silicon steel to improve relaxation resistance, or employing special heat treatments to stabilize performance). We ensure that every spring delivered is not merely a physical representation of the drawings, but a performance embodiment optimized by engineering.
3. Torsion Spring Product Features & Advantage
|
Feature
|
Advantage to You
|
|
Application-Oriented Design Simulation
|
Conducts torque-angle curve simulation and stress analysis before making samples, predicting performance in advance, reducing physical trial-and-error iterations, and accelerating development.
|
|
Full-Process Controlled Manufacturing Ecosystem
|
Internally, key processes such as wire modification, forming, heat treatment, and surface treatment are completed to achieve full-process quality control and ensure delivery time and consistency.
|
|
Extensive Experience in Special End Treatment
|
Excels at machining various complex arm ends (e.g., with holes, special bends, secondary machining), perfectly adapting to your unique installation and actuation needs.
|
|
Data-Driven Quality Commitment
|
Provides inspection reports for key dimensions and performance, and supports SPC data sharing, giving you full transparency and confidence in product quality.
|
4. Torsion Spring Product Specification
|
Specification Item
|
Detail / Range
|
Tolerance / Standard
|
|
Suitable Wire Diameter
|
0.10 ~ 10.00 mm
|
±0.01mm (Standard)
|
|
Mean Diameter Range
|
1.0 ~ 80.0 mm
|
±0.05mm (Small) / ±0.5% (Large)
|
|
Total Coils
|
2 ~ 30 coils
|
±0.25 coils
|
|
Torsional Stiffness
|
0.001 ~ 100 N·mm/deg
|
Calculated per Design
|
|
Torque at Initial Position
|
Optional, Customizable
|
Preload solutions available
|
|
Fatigue Life (Dynamic)
|
10,000 ~ 1,000,000+ Cycles
|
Based on Application Validation
|
|
Arm Angle Tolerance
|
±3° (Standard)
|
Achievable ±1° (Precision)
|
|
Primary Standards Followed
|
Customer Drawing Priority, Ref. GB, ISO, DIN, ASTM
|
|

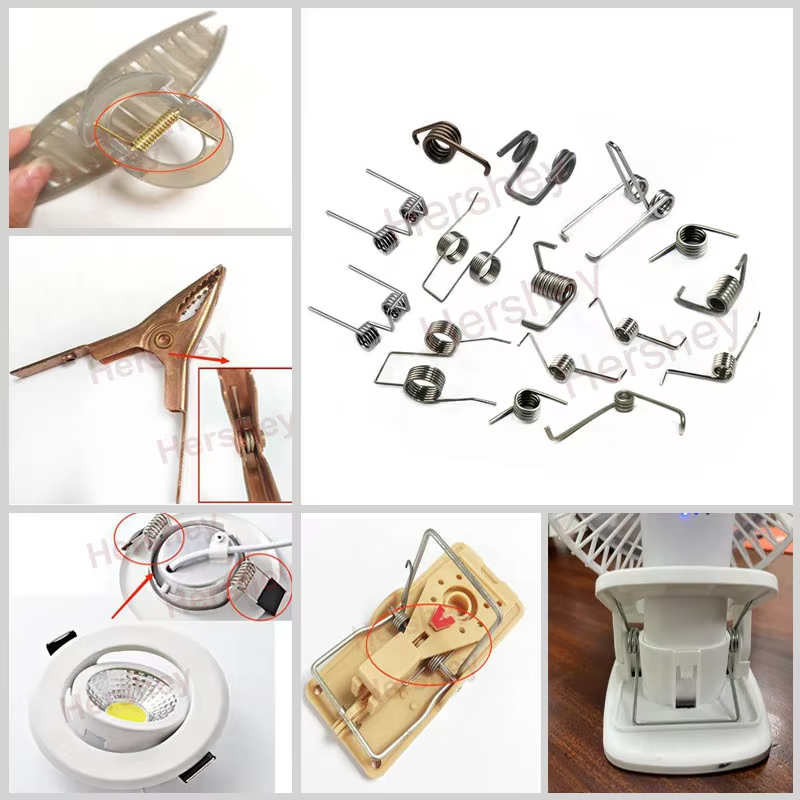

5.Torsion SpringProduct Application
Torsion Springs: The Invisible Engine Driving Precision Motion and Safety Mechanisms
Precision Transmission & Clutch Mechanisms: Used in office equipment paper feed systems, print head returns, small gearboxes, providing precise angular displacement and return force.
Safety & Locking Devices: Automotive seatbelt retractor pretensioners, chassis safety switches, amusement ride safety bars, requiring high reliability and fail-safe design.
Home & Personal Care Appliances: Coffee grinder adjustment, electric shaver head floating mechanism, beauty device massage head drive, focusing on user experience and quiet design.
Agricultural & Garden Tools: Scissor-type pruner return springs, power tool torque limiters, needing to adapt to outdoor environments and withstand impact loads.
6. Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
